Oil Production 13Cr Hot Rolled API 5CT Well tubing Pipe

Brand Name : Zhongshi

Model Number : 1.05"-4 1/2"

Certification : API 5CT, ISO, QHSE

Place of Origin : China

MOQ : 1 metric ton

Price : Negotiable

Payment Terms : T/T, L/C

Packaging Details : Be bundled by steel strap

Steel grade : J55, K55, L80, N80, P110, P110-13Cr

Standard : API 5CT, ISO, QHSE

Technique : Hot rolled

Alloy or not : Alloy steel

Secondary or not : Non-secondary

Section of shape : Round

Contact Now

API 5CT Standard casing and tubing for oil production extraction





Description for 13Cr tubing pipe:



Tubing is a pipe used for the transportation of crude oil and natural gas from oil or gas layer to the

surface after drilling is completed. It is made to withstand the pressure generated from the extraction

process.



Tubing is manufactured in the same way as casing, except that an additional process known as

"upsetting" is applied to thicken the pipes.





Features:



1. Seamless oil pipe

2. Hot-rolling pipe

3. Size OD: 1.05”-4 1/2”



Technical specification:



API 5CT standard casing and tubing
Steel grade J55,K55,N80, N80Q, L80, P110
Processing method: Hot rolled
Outside Diameter: 26.67-508mm
Wall thickness: 2.87-22.22mm
Length: R1, R2, R3
Standard: API 5CT
Specification: O.D: 1.05" - 20" (inch)
  WT: 4.6PPF,4.7PPF,5.8PPF,5.95PPF,6.4PPF,6.5PPF,7.8PPF,7.9PPF,etc.





Chemical Compositions(%):



Standard Steel Grade Chemical Composition (%)
C Si Mn P S Cr Ni Cu Mo V Als
API 5CT J55



0.34~

0.39



0.20~

0.35



1.25~

1.50

 ≤0.020 ≤0.015 ≤0.15 ≤0.20 ≤0.20 /



/



 ≤0.020
API 5CT K55

0.34~

0.39

0.20~

0.35

1.25~

1.50

 ≤0.020 ≤0.015 ≤0.15 ≤0.20 ≤0.20 / / ≤0.020
API 5CT N80

0.34~

0.38

0.20~

0.35

1.45~

1.70

 ≤0.020 ≤0.015 ≤0.15 / / /

0.11~

0.16

 ≤0.020
API 5CT L80

0.15~

0.22

 ≤1.00

0.25~

1.00

 ≤0.020 ≤0.010

12.0~

14.0

 ≤0.20 ≤0.20 / / ≤0.020
API 5CT P110

0.26~

0.35

0.17~

0.37

0.40~

0.70

 ≤0.020 ≤0.010

0.80~

1.10

 ≤0.20 ≤0.20

0.15~

0.25

 ≤0.08 ≤0.020





Mechanical properties:



Standard Steel grade Tensil Strength(Mpa) Yeild Strength(Mpa) Elongation(%)
API 5CT J55 ≥517 379~552 0.5%
API 5CT K55 ≥655 379~552 0.5%
API 5CT N80 ≥689 552~758 0.5%
API 5CT L80 ≥655 552~655 0.5%
API 5CT P110 ≥862 758~965 0.6%





Oil Production 13Cr Hot Rolled API 5CT Well tubing Pipe






Product Tags:

Hot Rolled Well Casing Pipe



API 5CT Well Casing Pipe


Buy cheap Oil Production 13Cr Hot Rolled API 5CT Well tubing Pipe product

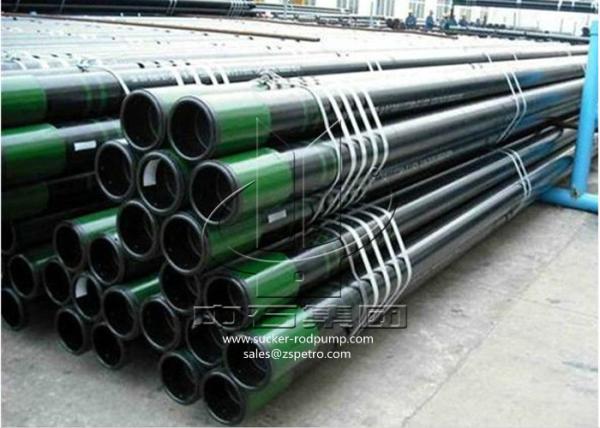

Oil Production 13Cr Hot Rolled API 5CT Well tubing Pipe Images
