4 1/2" Seamless PSL1 PSL2 PSL3 L80 Oilfield Tubing Pipe

Brand Name : Zhongshi

Model Number : 1.05"-4 1/2"

Certification : API 5CT, ISO, QHSE

Place of Origin : China

MOQ : 1 metric ton

Price : Negotiable

Payment Terms : T/T, L/C

Packaging Details : Be bundled by steel strap

Material : Alloy steel

Steel grade : J55, K55, L80, N80, P110, P110-13Cr

Structure : Seamless

Processing : Hot-rolled

Standard : API 5CT

Application : Oil industry

Contact Now

PSL1 PSL2 PSL3 L80 Steel Grade Oilfield Tubing Pipe





Description of oil tubing:



Tubing is pipe used for the transportation of crude oil and natural gas from oil or gas layer to the surface

after drilling is completed. It is made to withstand the pressure generated from the extraction process.





Features:



1. Seamless oil pipe

2. Hot-rolling pipe

3. Size OD: 1.05”-4 1/2”





Technical specification:



Spec. O.D. Nominal weight Wall thickness Upset type
NU with thread and coupling EU with thread and coupling
In Mm In Kg/m Lb/ft Kg/m Lb/ft Mm In H40 J55 L80 N801,Q C90 T95 P110
1.05 26.67 1.05 1.7 1.14 1.79 1.2 2.87 0.113 NU NU NU NU NU NU -
1.05 26.67 1.05 2.2 1.48 2.29 1.54 3.91 0.154 U U U U U U U
1.315 33.4 1.315 2.53 1.7 2.68 1.8 3.38 0.133 NU NU NU NU NU NU -
1.315 33.4 1.315 3.26 2.19 3.33 2.24 4.55 0.179 U U U U U U U
1.66 42.16 1.66 3.42 2.3 3.57 2.4 3.56 0.14 NU NU NU NU NU NU -
1.66 42.16 1.66 4.51 3.03 4.57 3.07 4.85 0.191 U U U U U U U
1.9 48.26 1.9 4.09 2.75 4.32 2.9 3.68 0.145 NU NU NU NU NU NU -
1.9 48.26 1.9 5.43 3.65 5.55 3.73 5.08 0.2 U U U U U U U
2 3/8 60.32 2.375 5.95 4 - - 4.24 0.167 U N N N N N -
2 3/8 60.32 2.375 6.85 4.6 6.99 4.7 4.83 0.19 NU NU NU NU NU NU NU
2 3/8 60.32 2.375 8.63 5.8 8.85 5.95 6.45 0.254 - - NU NU NU NU NU
2 3/8 60.32 2.375 10.94 7.35 11.09 7.45 8.53 0.336 - - U - U U -
2 7/8 73.02 2.875 9.52 6.4 9.67 6.5 5.51 0.127 NU NU NU NU NU NU NU
2 7/8 73.02 2.875 11.61 7.8 11.76 7.9 7.01 0.276 - - NU NU NU NU NU
2 7/8 73.02 2.875 12.8 8.6 12.95 8.7 7.82 0.308 - - NU NU NU NU NU
2 7/8 73.02 2.875 13.91 9.35 14.06 9.45 8.64 0.34 - - U - U U -
3 1/2 88.9 3.5 11.46 7.7 - - 5.49 0.216 N N N N N N -
3 1/2 88.9 3.5 13.69 9.2 13.84 9.3 6.45 0.254 NU NU NU NU NU NU NU
3 1/2 88.9 3.5 15.18 10.2 - - 7.34 0.289 N N NU N N N -
3 1/2 88.9 3.5 18.9 12.7 19.27 12.95 9.52 0.375 - - NU NU NU NU NU
4 101.6 4 14.14 9.5 - - 5.74 0.226 N N N N N N -
4 101.6 4 - - 16.37 11 6.65 0.262 U U U U U U -
4 1/2 114.3 4.5 18.75 12.6 18.97 12.75 6.88 0.271 NU NU NU NU NU NU -





Mechanical properties:



Standard Steel grade Tensil Strength(Mpa) Yeild Strength(Mpa) Elongation(%)
API 5CT J55 ≥517 379~552 0.5%
API 5CT K55 ≥655 379~552 0.5%
API 5CT N80 ≥689 552~758 0.5%
API 5CT L80 ≥655 552~655 0.5%
API 5CT P110 ≥862 758~965 0.6%





4 1/2" Seamless PSL1 PSL2 PSL3 L80 Oilfield Tubing Pipe




Product Tags:

L80 Oilfield Tubing Pipe



PSL3 Oilfield Tubing Pipe



4 1/2" Well Drilling Pipe


Buy cheap 4 1/2" Seamless PSL1 PSL2 PSL3 L80 Oilfield Tubing Pipe product

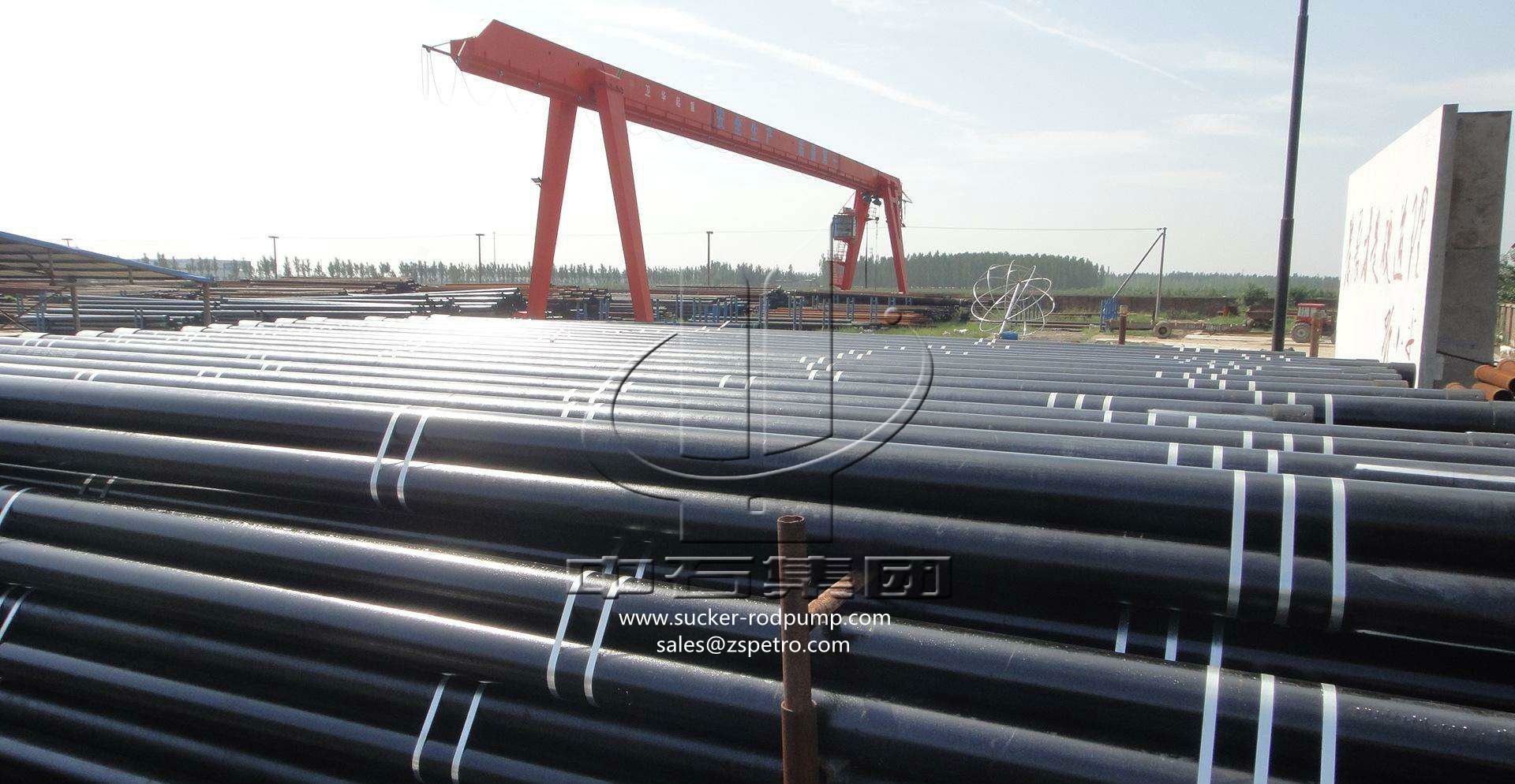

4 1/2" Seamless PSL1 PSL2 PSL3 L80 Oilfield Tubing Pipe Images
