Well Drilling Welded 4 1/2 Inch 20 Inch Cement Basket

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~20"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Type : Welded Type

Usage : Oilfield drilling

Size : 4 1/2~20 inch

Material : Carbon Steel

Bow number : 10~34

Condition : Brand New

Contact Now

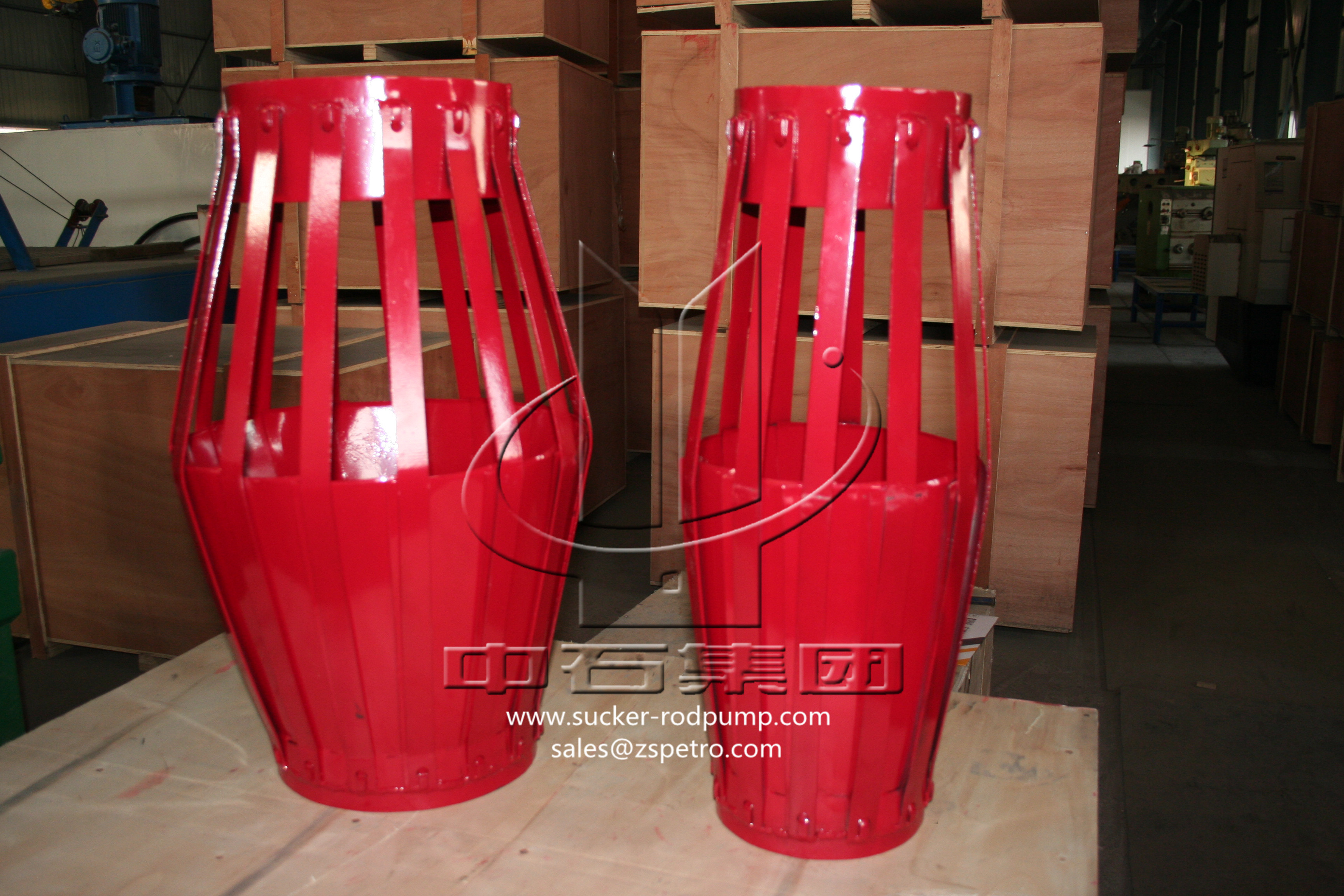

Well drilling welded cement basket for oilfield


Cementing basket is an effective aid in retaining and supporting the cement when weak for mations and stage cementing is encountered.The cementing basket can expand or contract as needed and can be rotated or reciprocated. Hinged Cementing Basket It is available in the size range 4-1/2 " to 20".


Well drilling welded cement basket for oilfield Features



  • Available in sizes 4-1/2" to 20"
  • Slip on and hinged type
  • Metal or canvas fins infilling
  • Welded or non welded bow
  • Open and full type
Well drilling welded cement basket for oilfield Specification

Casing size
NO. of BowsMin. Hole SizeBasket O.D.Total Length
In.ininmm
4 1/210612 1/2317.524 1/2
510613342.924 1/2
5 1/2127 1/413 1/2342.924 1/2
6 5/8128 3/814 5/8371.524 1/2
7148 3/81538124 1/2
7 5/8149 1/215 5/8396.924 1/2
8 5/81610 5/816 5/8422.324 1/2
9 5/81811 5/817 5/8447.724 1/2
10 3/41812 3/418 3/4476.324 1/2
11 3/42013 3/419 3/4501.724 1/2
11 3/82415 1/221 3/8542.924 1/2
16281824609.624 1/2
18 5/83420 5/826 5/8676.324 1/2
20342228711.224 1/2
