API Multiple Stage Cementing Collars 5 1/2" Oilfield Cementing Tools

Brand Name : Puyang Zhongshi Group

Model Number : 5 1/2"~13 3/8"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Type : Mechanical Type

Material : Steel & aluminum

Processing : Casting

Thread : API type

Overall Length : 1460-1780

Working Pressure : 35-50

Contact Now

Oilfield Drilling Equipment API Multiple Stage Cementing Collars



The Multiple Stage Cementing Collar provides a means of opening and closing port holes for cement displacement and positive containment of the cement after displacement. All internal parts are drillable, and are held from rotating during drilling.


Oilfield Drilling Equipment API Multiple Stage Cementing Collars Features
  • A slight pressure build-up of 300-400 PSI will help to seat the plug in the Baffle.
  • Standard for reliability,low risk and more efficient operations.
  • Easy to handle because of compact, simple design that minimizes the moving parts
  • When the closing plug bumps approximately 800-1000 PSI, the pressure will close the port holes.
  • Reduces total pumping pressure in long casing strings
Oilfield Drilling Equipment API Multiple Stage Cementing Collars Specification

Specifications (in) 5 1/2" 7" 9 5/8" 13 3/8"
Max O.D.(mm) Φ170 Φ208 Φ283 Φ381
Drill-out I.D.(mm) Φ122 Φ155 Φ220 Φ315
Overall Length (mm) 1082 1182 1222 1280
Rated Load 140 170 210 300
Sealing capacity (Mpa) 25 25 25 25
Opening Pressure (Mpa) 13 13 13 14
Closing Pressure (Mpa) 5 5 5 5
Lower Sliding Sleeve I.D.(mm) Φ85 Φ115 Φ176 Φ203
Upper Sliding Sleeve I.D. (mm) Φ95 Φ125 Φ197 Φ285

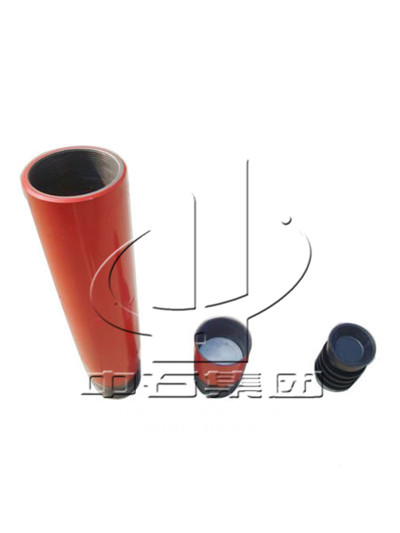

API Multiple Stage Cementing Collars 5 1/2" Oilfield Cementing Tools
