API Standard Oilfield Tubing Pipe , Composite Drill Pipe Seamless Structure

Brand Name : Zhongshi

Model Number : 1.05"-4 1/2"

Certification : API 5CT, ISO, QHSE

Place of Origin : China

MOQ : 1 metric ton

Price : Negotiable

Payment Terms : T/T, L/C

Packaging Details : Be bundled by steel strap

Material : Alloy steel

Special pipe : API oil pipe

Steel grade : J55, K55, L80, N80, P110, P110-13Cr

Structure : Seamless

Place or origin : China (Mainland)

Technique : Hot-rolled

Contact Now

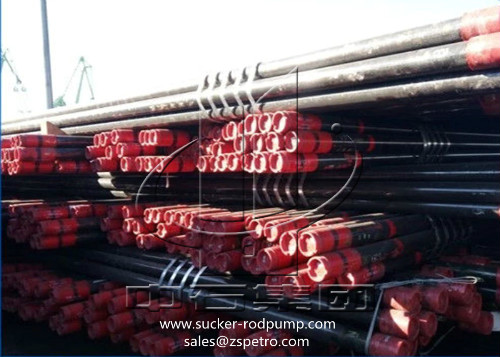

API Standard Oilfield Tubing Pipe With Steel Pipe Size OD 2 3/8" 2 7/8" 3 1/2" 4" 4 1/2"





Tubing pipe description:



Oil tubing pipe is a seamless pipe to transport oil and gas to groud surface.





Features:



1. Seamless oil pipe

2. Hot-rolling pipe

3. Size OD: 1.05”-4 1/2”





Technical specification:



Type Size(O.D. ) Nominal Weight W.T. I.D. Coupling
in Mm Lbf/ft Kg/m mm mm O.D.mm Min length mm

NUE

J55

L80

N80

P110

 1.90 48.26 2.75 4.09 3.68 40.90 55.88 95.25
2 3/8 60.32 4.60 6.85 4.83 50.66 73.02 107.95
2 7/8 73.02 6.40 9.52 5.51 62.00 88.90 130.18
3 ½ 88.90 9.20 13.69 6.45 76.00 107.95 142.88
4 1/2 114.30 12.60 18.75 6.88 100.54 132.08 155.58

EUE

J55

L80

N80

P110



 1.90 48.26 2.90 4.32 3.68 40.90 63.50 98.42
2 3/8 60.32 4.70 6.99 4.83 50.66 77.80 123.82
2 7/8 73.02 6.50 9.67 5.51 62.00 93.17 133.35
3 ½ 88.90 9.30 13.84 6.45 76.00 114.30 146.05
4 1/2 114.30 12.75 18.97 6.88 100.54 141.30 158.75





Mechanical properties:



Grade Yield Strength Tensile Strenght Hardness Allowable
  Min Max Min Max Max Hardness
  Psi Mpa Psi Mpa Psi Mpa HRC BHN Variation
J55 55,000 379 80,000 552 75,000 517 - - -
K55 55,000 379 88,000 552 95,000 655 - - -
N80 80,000 552 110,000 758 100,000 689 - - -
N80-1 80,000 552 95,000 655 95,000 655 23 241 -
C90 90,000 621 105,000 724 100,000 689 25.4 255 3
C95 95,000 655 110,000 758 105,000 724 - - -
T95 95,000 655 110,000 758 105,000 724 25.4 255 3
P110 110,000 758 140,000 965 125,000 862 - - -



API Standard Oilfield Tubing Pipe , Composite Drill Pipe Seamless Structure
