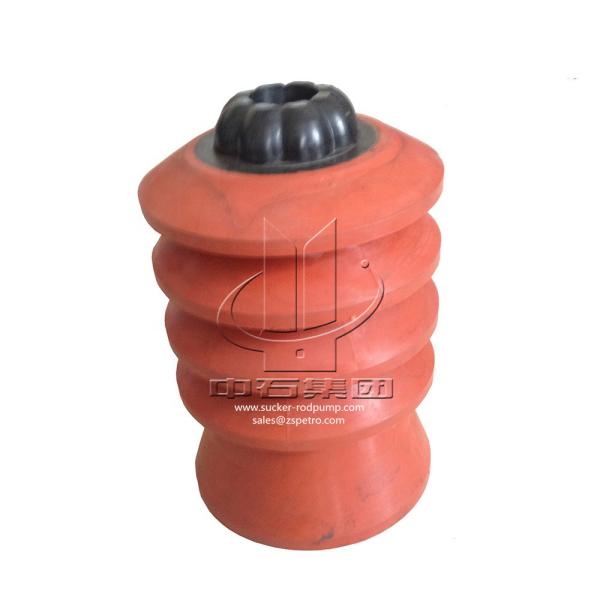

Non Rotating Cement Wiper Plug PDC For Oil Well Drilling

Name: Non Rotating Cement Wiper Plug PDC For Oil Well Drilling
Brand: Puyang Zhongshi Group
Price: 1 USD

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~20"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Product : Non-Rotating Cement Wiper Plug For Well Drilling

Material : NBR

Feature : PDC drillable

Hardness : 75-95

Temperature : -30℃ to 150℃

Working Pressure : ≥15MP

Contact Now

Non-Rotating Cement Wiper Plug For Well Drilling

Cementing Plugs are used during primary cementing operations to wipe out dispersed fluid including drilling fluid and cement from the inner diameter of casing, therefore minimizes the contamination of cement slurry.

Non-Rotating Cement Wiper Plug For Well Drilling Features.

Eliminate rotation of the plug during drill out.
Operating range of temperature with Hydrogenated Nitrile core is up to 200 degree Fahrenheit.
The bottom plug in orange with rupture diaphragm at 300 psi differential.
Can be operated in either synthetic or mud fluids.

Non-Rotating Cement Wiper Plug For Well Drilling Specification

Casing	Casing Weight Range		Wiper Fin O.D		Working	Working	Burst	Hardness
Size(in)	mm	in	mm	in	Temperature	Pressure	Pressure	Hardness
4 1/2"	14.14-17.26	9.50-11.60	110	4.331	-30℃ to 150℃	≥15MP	1MP-2MP	75-95
5"	17.11-35.86	11.50-24.10	122	4.803
5 1/2"	20.83-39.88	14.00-26.80	135	5.315
7"	25.30-56.55	17.00-38.00	170	6.693
7 5/8"	35.72-63.69	24.00-42.00	185	7.283
9 5/8"	53.57-79.62	36.00-53.50	235	9.252
13 3/8"	71.43-107.15	48.00-72.00	333	13.11	-30℃ to 150℃	≥10MP
20"	139.89-197.93	94.00-133.00	498	19.606	-30℃ to 150℃	≥10MP
