API 11AX Tungsten Carbide Spray Metal Pump Plungers With Sand Scraping Ring

Brand Name : Zhongshi

Model Number : ZS

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 10000pcs/month

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Product Name : Tungsten carbide pump plunger

Surface coating : Tungsten carbide spray metal

Standard : API 11AX

Application : Sucker rod pump parts

Plunger material : 45# steel

Parts code : P

Contact Now

API 11AX Tungsten Carbide Spray Metal Pump Plungers With Sand Scraping Ring

Tungsten Carbide Spray Metal Plunger Description

The Spray Metal Plunger is a key part of sucker rod pump, the spray metal process material include Nickel-based alloy powder also the

tungsten carbide powder,Plunger with sand scraping ring can effectively prevent sand from entering the pump barrel.

Technical Specifications



API code Part No. API No. Marks
P21A P21A-106(XX)-L P21-106 Plunger, Pin End,
One Piece
P21A-125(XX)-L P21-125
P21A-150(XX)-L P21-150
P21A-175(XX)-L P21-175
P21A-200(XX)-L P21-200
P21A-225(XX)-L P21-225
P21A-250(XX)-L P21-250
P21I P21I-106(XX)-L P21-106 Plunger, Pin End,
One Piece, inclined plane
P21I-125(XX)-L P21-125
P21I-150(XX)-L P21-150
P21I-175(XX)-L P21-175
P21I-200(XX)-L P21-200
P21I-225(XX)-L P21-225
P21I-250(XX)-L P21-250
P21I-275(XX)-L P21-275
P21I-325(XX)-L —
P21I-375(XX)-L P21-375
P22 P22-125(XX)-L P22-125 Plunger,
Assembled
P22-150(XX)-L P22-150
P22-175(XX)-L P22-175
P22-200(XX)-L P22-200
P22-225(XX)-L P22-225
P22-250(XX)-L P22-250
P22-275(XX)-L P22-275
P23 P23-175(XX)-L P23-175 Plunger,
Box End
P23-225(XX)-L P23-225
P23-275(XX)-L P23-275
P23-375(XX)-L P23-375


Note:



1) L is standard strength for plunger;

2) “XX” is Material identification symbol;

3) The outer surface of the plunger can be processed with annular grooves according to user needs;

4) Two ends are monel connector.

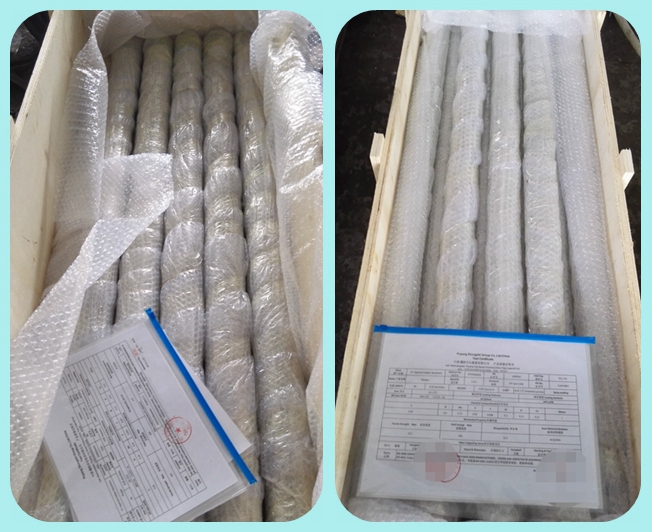

Package Picture:



API 11AX Tungsten Carbide Spray Metal Pump Plungers With Sand Scraping RingT
